Tavsif

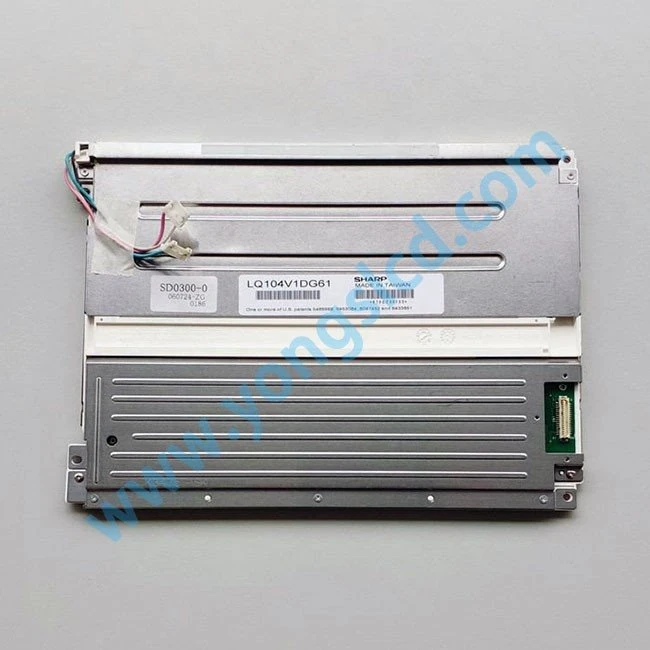

O'tkirLCD ekranLQ104V1DG61

Panel markasi	O'tkir
Panel modeli	LQ104V1DG61
Panel hajmi	10,4 dyuym
Panel turi	a-Si TFT-LCD, LCD moduli;
Piksellar soni	640 (RGB) × 480, VGA, 76PPI
Piksellar joylashuvi	RGB vertikal chiziq
Displey maydoni	211,2 (V) × 158,4 (H) mm
Ko'rinadigan maydon	214,6 (V) × 162,4 (H) mm
jismoniy o'lchov	246,5 (V) × 179,4 (H) × 13,7 (D) mm
Yuzaki ishlov berish	Mat, Qattiq qoplama (3H), akslantirishga qarshi davolash
Panelning yorqinligi	450 CD / m² (Odatda)
Kontrast	600: 1 (tip) (TM)
Ko'rish burchagi	70/70/50/60 (tip.) (CR≥10)
Ishlash tartibi	TN, odatda oq displey, transmissiv
Eng yaxshi istiqbol	6 o' soat
Reaksiya vaqti	10/25 (tipik) (Tr / Td)
Displey rangi	262K, 44% NTSC
yorug'lik manbai turi	2 dona CCFL, 50K soat, haydovchisiz
ish chastotasi	60Hz
sensorli ekran	Teginish yo'q
Panelning og'irligi	620g (Maks.)
Panel dastur	sanoat
Signal interfeysi	Parallel RGB (1 ch, 6-bit), 31 pin, ulagich
Disk ekranidagi kuchlanish	3.3 / 5.0V (tipik) (VCC)
ish muhiti	Ishlash: -30 ~ 80 ° C; Saqlash: -30 ~ 80 ° C
